EC Standard Folding Engine Cranes

    Pfaff Silberblau
  • Brand: Pfaff Silberblau
  • Availability: In Stock
  • Estimated lead time to dispatch is 2-3 days

  • £610.82


Hire Quote

This product is available for hire

Get a quote today:

Add to Hire Quote

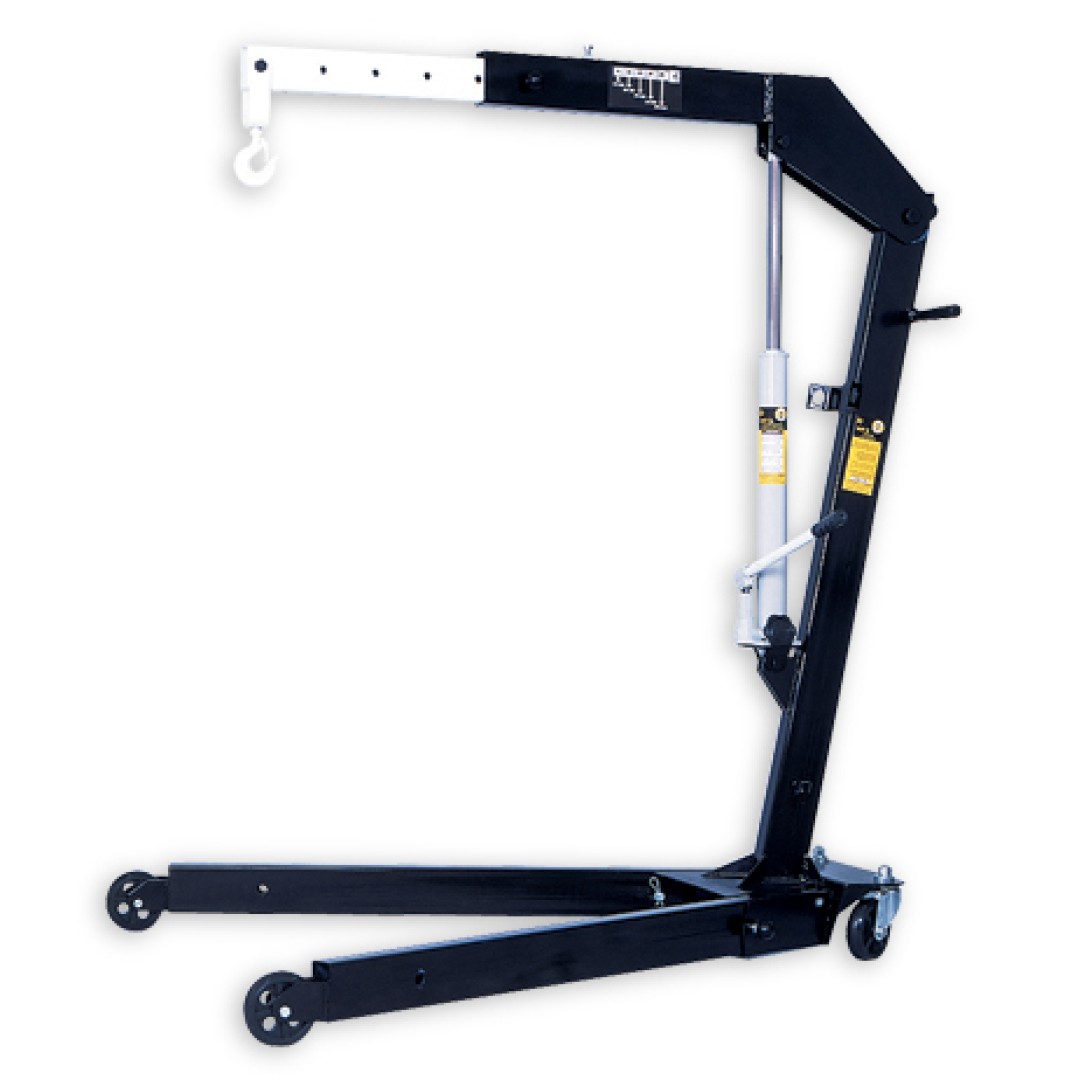

EC Standard Folding Engine Cranes

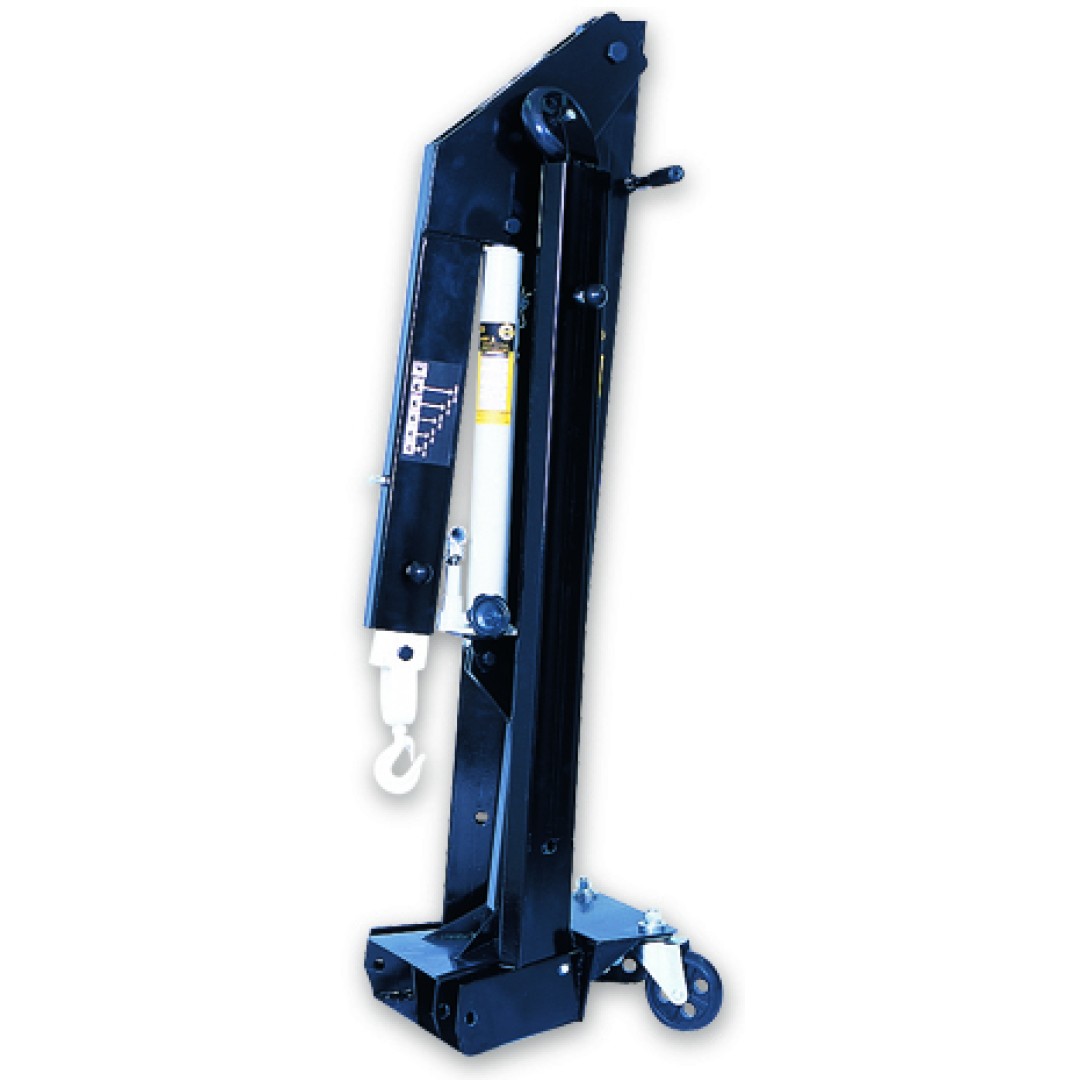

The Steerman engine crane features welded construction with rugged reinforced tubular steel. The special hydraulic long rams are equipped with a patented built-in by-pass mechanism. The innovative design allows it to be quickly folded away for very easy transportation. Ready to despatch straight from the shelf.

Features:

  • V-shaped chassis base
  • Up to 1,000kg Capacity
  • Up to 1020mm Boom length
  • 5 lifting positions
  • Maximum hook height 2145mm (position 5)
  • Not to be confused with low cost alternatives


Model  Boom position Capacity - kg Min. hook height - mm Max. hook height - mm Boom length - mm Weight - kg

CR- 1000

 P1 1000 439 1978 620 110
- P2 900 341 2021 720 110
- P3 800 243 2075 820 110
- P4 700 145 2131 920 110
- P5 600 0 2170 1020 110

Catalogue Catalogue

Model  Boom position Capacity - kg Min. hook height - mm Max. hook height - mm Boom length - mm Weight - kg

CR- 1000

 P1 1000 439 1978 620 110
- P2 900 341 2021 720 110
- P3 800 243 2075 820 110
- P4 700 145 2131 920 110
- P5 600 0 2170 1020 110
