YBA Spring Balancers

Brand: Yale
Availability: In Stock
Estimated lead time to dispatch is 2-3 Days

£692.73

Available Options

Spring Balancer Model

Qty

Description
Technical Specification

70kg with additional safety-device (wire arrest mechanism)

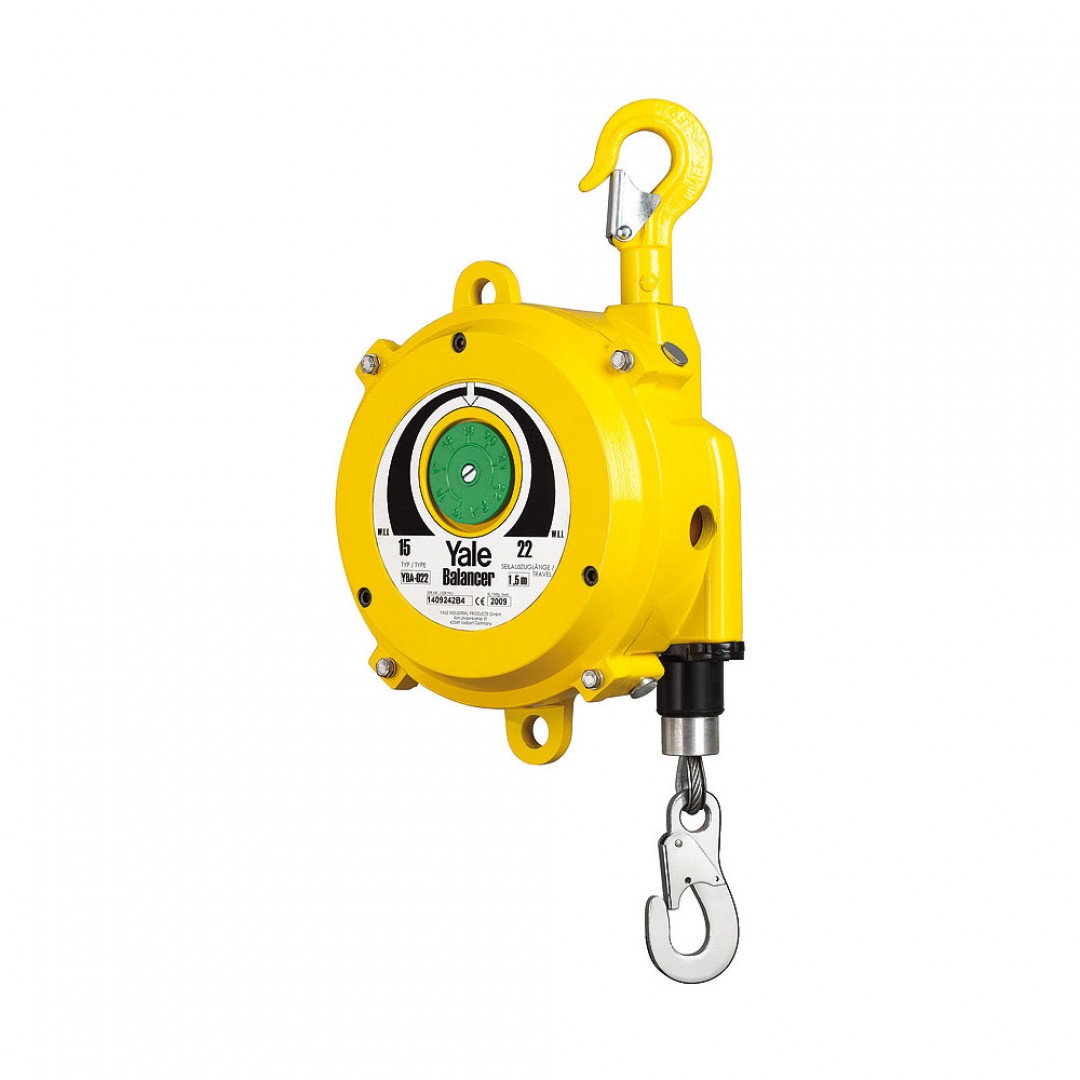

Yale is now able to offer a wide range of spring balancers. Spring balancers allow the worker to move the suspended tool or object up or down with very little effort. Depending on the spring adjustment, the object will remain in position or retract when no force is applied. With a spiral groove on a tapered drum, the winding radius is increased to match the torque build-up of the spring, thus neutralising it and achieving a balanced condition. This is the main difference between spring balancers and retractors. The YBA series has all of the features of the YBF series, but also has a wire arrest system. This is ideal for applications where there is the possibility of damage to the wire strands, e.g. fabrication, welding production lines and anywhere where there is a repetitive process.

Possible applications include:

Resistance spot welding machines
Measuring machines
Compressed air equipment
X-Ray apparatus
Power tools (electric driven)
Welding machines
Welding templates
Paint spraying apparatus
Cages

Model	Article Number	Capacity WLL kg	Lift mtr	Suspension eyes top (T) and bottom (B)	Adj. Of spring tension V = Vertical H = Horizontal	Weight kg
YBA-15	N08300033	9 - 15	1.3	T	V	5.5

YBA-30	N08300035	22 - 30	1.5	T + B	V	10.0
YBA-40	N08300036	30 - 40	1.5	T + B	V	12.5
YBA-50	N08300037	40 - 50	1.5	T + B	V	13.0
YBA-60	N08300038	50 - 60	1.5	T + B	V	13.5
YBA-70	N08300039	60 - 70	1.5	T + B	V	14.0

Model	Article Number	Capacity WLL kg	Lift mtr	Suspension eyes top (T) and bottom (B)	Adj. of spring tension V = Verticle H = Horizontal	Weight kg
YBA-15L	N08300040	9 - 15	2.3	T+B	V	10.0
YBA-22L	N08300041	15 - 22	2.3	T+B	V	10.0
YBA-30L	N08300042	22 - 30	2.3	T+B	V	11.0
YBA-40L	N08300043	30 - 40	2.3	T+B	V	14.5
YBA-50L	N08300044	40 - 50	2.3	T+B	V	15.0
YBA-60L	N08300045	50 - 60	2.3	T+B	V	16.0
YBA-70L	N08300045	60 - 70	2.3	T+B	V	16.5

Model	YBF-01 YBF-02 (Body type I)	YBF-03 YBF-05 (Body type I)	YBF-09 YBF-15 (Body type II)	YBF-03L YBF-05L (Body type II)	YBA-15 (Body type II)	YBF-22 YBF-30 (Body type III)	YBF-40 YBF-50 (Body type III)	YBF-60 YBF-70 YBF-85 YBF-100 (Body type III)	YBF-09L YBF-15L YBF-22L YBF-30L (Body type III)	YBF-40L YBF-50L (Body type III)	YBF-60L YBF-70L (Body type III)
A min., mm	315	290	340	375	340	445	440	440	445	440	440
A max., mm	1315	1590	1640	2875	1640	1945	1940	1940	2745	2740	2740
B, mm	132	148	174	197	174	218	220	220	218	220	220
C, mm	72	89	109	114	109	130	130	130	130	130	130
D, mm	68	78	95	105	95	111	111	111	111	111	111
E, mm	120	120	152	175	152	194	194	194	194	194	194
F, mm	22	25	15	23	15	35	35	35	35	35	35
G, mm	26	33	38	30	38	47	47	47	47	47	47
H, mm	10	10	12	12	12	15	17	17	15	17	17
I, mm	14	14	24	14	24	30	30	30	30	30	30
J, mm	9	9	14	14	14	18	18	18	18	18	18
K, mm	10	8	15	14	15	18	18	18	18	18	18
L, mm	17	14	18	17	18	24	24	24	24	24	24
M min., mm	45	45	39	65	39	46	46	46	46	46	46
M max., mm	65	75	68	105	68	83	83	83	83	83	83
N, mm	9	9	14	14	14	16	16	16	16	16	16
O, mm	6	6	9	8	9	12	14	14	12	14	14
P, mm	11	12	24	30	24	35	75	86	35	75	86
Q, mm	5	9	25	9	25	30	33	33	30	33	33
R, mm	30	32	72	45	94	80	105	116	80	105	116
S min., mm	20	35	65	55	87	72	97	97	72	97	97
S max., mm	38	50	99	85	121	112	137	137	112	137	137
T, mm	49	69	136	110	148	158	188	199	158	188	199
U, mm	–	–	–	–	–	130	130	130	130	130	130

Model	YBF-120 YBF-140 (Body type IV)	YBF-170 YBF-200 (Body type IV)	YBF-85L YBF-100L (Body type IV)	YBF-120L YBF-130L (Body type IV)	YBA-22 YBA-30 (Body type V)	YBA-40 YBA-50 (Body type V)	YBA-60 YBA-70 (Body type V)	YBA-15L YBA-22L YBA-30L (Body type V)	YBA-40L YBA-50L (Body type V)	YBA-60L YBA-70L (Body type V)
A min., mm	550	550	550	550	445	440	440	445	440	440
A max., mm	2050	2050	3050	3050	1945	1940	1940	2745	2740	2740
B, mm	247	247	247	247	218	220	220	218	220	220
C, mm	156	156	156	156	130	130	130	130	130	130
D, mm	128	128	128	128	111	111	111	111	111	111
E, mm	265	265	265	265	194	194	194	194	194	194
F, mm	40	40	40	40	35	35	35	35	35	35
G, mm	65	65	65	65	47	47	47	47	47	47
H, mm	17	17	17	17	15	17	17	15	17	17
I, mm	26	26	26	26	30	30	30	30	30	30
J, mm	15	15	15	15	18	18	18	18	18	18
K, mm	24	24	24	24	18	18	18	18	18	18
L, mm	27	27	27	27	24	24	24	24	24	24
M min., mm	54	54	54	54	46	46	46	46	46	46
M max., mm	95	95	95	95	83	83	83	83	83	83
N, mm	18	18	18	18	16	16	16	16	16	16
O, mm	16	16	16	16	12	14	14	12	14	14
P, mm	142	185	142	185	55	95	105	55	95	105
Q, mm	37	37	37	37	30	33	33	30	33	33
R, mm	155	193	155	193	115	140	140	115	140	140
S min., mm	175	215	175	215	107	132	132	107	132	132
S max., mm	205	248	205	248	147	172	172	147	172	172
T, mm	268	268	268	310	180	208	218	180	208	218
U, mm	156	156	156	156	130	130	130	130	130	130
