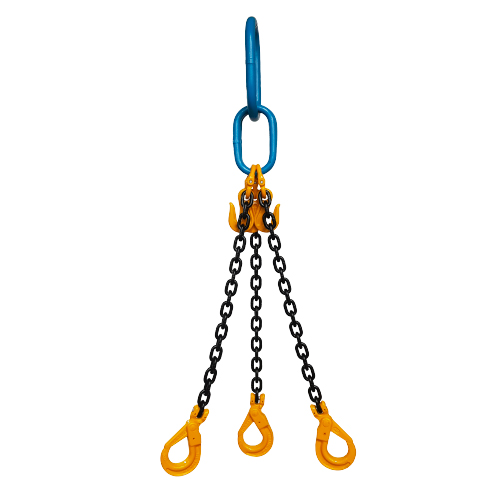

Yoke Grade 8 8mm Three Leg 4.2 Tonne Chain Sling
- Brand: Yoke
- Estimated lead time to dispatch is Same Day Before 1pm
-
£167.65
Quick Overview:
Chain Diameter: 8mm
Number of Legs: 3
Safe Working Load: 4.25Tonnes
Standard: BSEN818-4:1996+A1:2008
Supplied with Relevant Certificates
| Chain Size mm | Straight Lift 0°-45° | Straight 45°-60° | Choke Hitch 0°-45° | Choke Hitch 45°-60° | Double Basket 0°-45° | Double Basket 45°-60° |
| 7mm | 3.1 | 2.2 | 2.5 | 1.7 | 3.15 | 2.2 |
| 8mm | 4.2 | 3.0 | 3.3 | 2.4 | 4.2 | 3.0 |
| 10mm | 6.7 | 4.75 | 5.3 | 3.8 | 6.7 | 4.75 |
| 13mm | 11.2 | 8.0 | 8.9 | 6.4 | 11.2 | 8.0 |
| 16mm | 17.0 | 11.8 | 13.6 | 9.4 | 17.0 | 11.8 |
| 20mm | 26.5 | 19.0 | 21.2 | 15.2 | 26.5 | 19.0 |
| 22mm | 31.5 | 22.4 | 25.2 | 17.9 | 31.5 | 22.4 |
| 26mm | 45.0 | 31.5 | 36.0 | 25.2 | 45.0 | 31.5 |
| 32mm | 67.0 | 47.5 | 53.6 | 38.0 | 67.0 | 47.5 |
All loads shown in tonnes
Chain Sling Selection
Safe Use of Grade 8 Chain Slings
Grade 8 - Three Leg & Four Leg
| Chain Size mm | Straight Lift 0°-45° | Straight 45°-60° | Choke Hitch 0°-45° | Choke Hitch 45°-60° | Double Basket 0°-45° | Double Basket 45°-60° |
| 7mm | 3.1 | 2.2 | 2.5 | 1.7 | 3.15 | 2.2 |
| 8mm | 4.2 | 3.0 | 3.3 | 2.4 | 4.2 | 3.0 |
| 10mm | 6.7 | 4.75 | 5.3 | 3.8 | 6.7 | 4.75 |
| 13mm | 11.2 | 8.0 | 8.9 | 6.4 | 11.2 | 8.0 |
| 16mm | 17.0 | 11.8 | 13.6 | 9.4 | 17.0 | 11.8 |
| 20mm | 26.5 | 19.0 | 21.2 | 15.2 | 26.5 | 19.0 |
| 22mm | 31.5 | 22.4 | 25.2 | 17.9 | 31.5 | 22.4 |
| 26mm | 45.0 | 31.5 | 36.0 | 25.2 | 45.0 | 31.5 |
| 32mm | 67.0 | 47.5 | 53.6 | 38.0 | 67.0 | 47.5 |
All loads shown in tonnes
