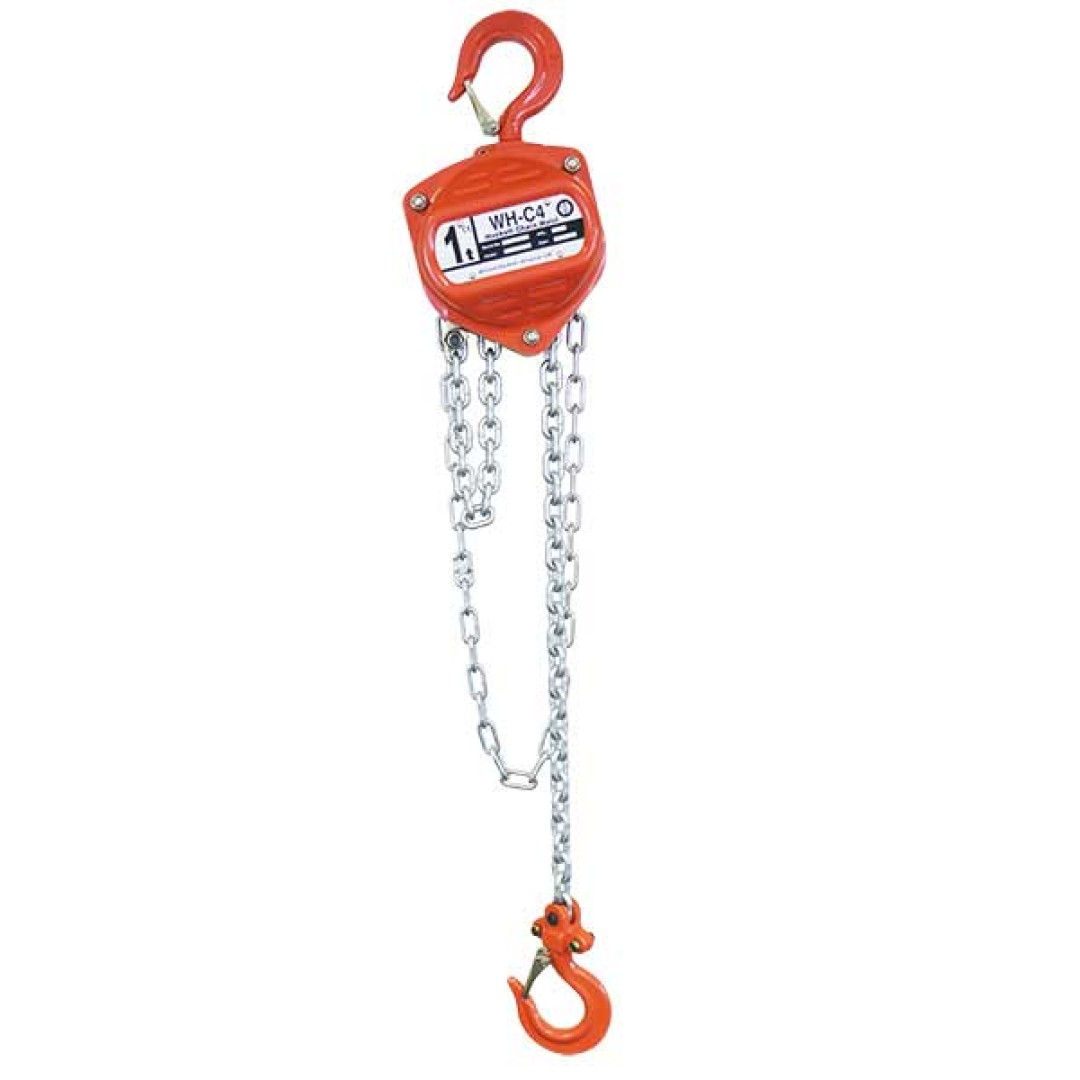

William Hackett WH-C4 chain hoist | 500Kg - 10 Tonnes

  • William Hackett WH-C4 chain hoist | 500Kg - 10 Tonnes
    William Hackett
  • Brand: William Hackett
  • Availability: In Stock
  • Estimated lead time to dispatch is 1 Day
  • £123.85


Available Options


The William Hackett WH-C4 chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C. Please note that the maximum operating temperature range of William Hackett hoists can be increased to 65°C subject to operator competency and safety.

The design and specification of the William Hacknett WH-C4 chain hoist includes.

  • WORKING LOAD LIMIT RANGE: 500kg to 50 tonnes
  • LIGHT LOAD CAPABILITY: the WH-C4 is tested and certified at 2% of the chain hoist rated capacity
  • TWIN PAWL: double safety, fitted as standard
  • SAFETY LATCHES: the WH-C4 chain hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure
  • OVERLOAD INDICATOR MARKS: WH-C4 chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either either side of the hook throat. By measuring the distance between the indicator marks, the hook can be quickly and easily checked to see if any stretch has occurred due to misuse or overloading
  • HAND CHAIN JOINER: a unique hand chain joiner is used as a quick and secure method of joining the hand chain without the need to cut, bend, open and close a link of existing hand chain.
  • HOOK HOUSING: the WH-C4 chain hoist top and bottom hook housing are secured with socket head cap screws/hex head bolts and nyloc insert locking nuts
  • FLEETING/CROSS HAULING: the WH-C4 chain hoist is tested and certified for fleeting or cross hauling applications up to 45° fro the vertical without deration
  • LOAD CHAIN: WH-C4 chain blocks are fitted with load chain that fully complies with international standards BS EN818-7 Grade T
  • OVERLOAD LIMITER: available as an option upon request


The William Hackett WH-C4 chain hoist meets and exceeds the requirements of the following international standards:

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2012
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017


Part Code WLL Tonnes  No. of Falls Load Chain (mm) Hand Chain (mm) Standard Lift (m) a (mm) b (mm)  e (mm) f (mm) g (mm) g (mm)
h (mm)
Mass kg 3m HOL Extra Weight per M (kg)
022.050 0.50 1 5x15 5x25 3 125 130 22.5 32 37 280 7.80 1.38
022.100 1.00 1 6x18 5x25 3 134 155 26.5 40 44 306 11.10 1.62
022.160 1.60 1 8x24 5x25 3 151 173 32.5 42 48 368 15.80 2.23
022.200 2.00 1 8x24 5x25 3 157 185 36.5 46 52 445 16.80 2.23
022.32D00 3.20 2 8x24 5x25 3 157 235 43.5 52 62 520 24.20 3.62
022.500 5.00 2 10x30 5x25 3 180 262 51.0 60 77 600 38.40 5.18
022/750 7.50 3 10x30 5x25 3 192 373 64.0 85 86 740 58.20 7.60
022/1000 10.00 4 10x30 5x25 3 180 365 53.0 85 86 760 68.90 9.52



*More lift height options available on request

Manual Manual





WLL Tonnes  No. of Falls Load Chain (mm) Hand Chain (mm) Standard Lift (m) a (mm) b (mm)  e (mm) f (mm) g (mm) g (mm)
h (mm)
Mass kg 3m HOL Extra Weight per M (kg)
0.50 1 5x15 5x25 3 125 130 22.5 32 37 280 7.80 1.38
1.00 1 6x18 5x25 3 134 155 26.5 40 44 306 11.10 1.62
1.60 1 8x24 5x25 3 151 173 32.5 42 48 368 15.80 2.23
2.00 1 8x24 5x25 3 157 185 36.5 46 52 445 16.0 2.23
3.20 2 8x24 5x25 3 157 235 43.5 52 62 520 24.20 3.62
5.00 2 10x30 5x25 3 180 262 51.0 60 77 600 38.40 5.18
7.50 3 10x30 5x25 3 192 373 64.0 85 86 740 58.20 7.60
10.00 4 10x30 5x25 3 180 365 53.0 85 86 760 68.90 9.52
