VIP-Oval-link for PowerPoint

Rud

Brand: Rud
Availability: In Stock
Estimated lead time to dispatch is Same Day Before 1pm

£13.04

Available Options

VIP-Oval-link Model

Qty

Description
Technical Specification

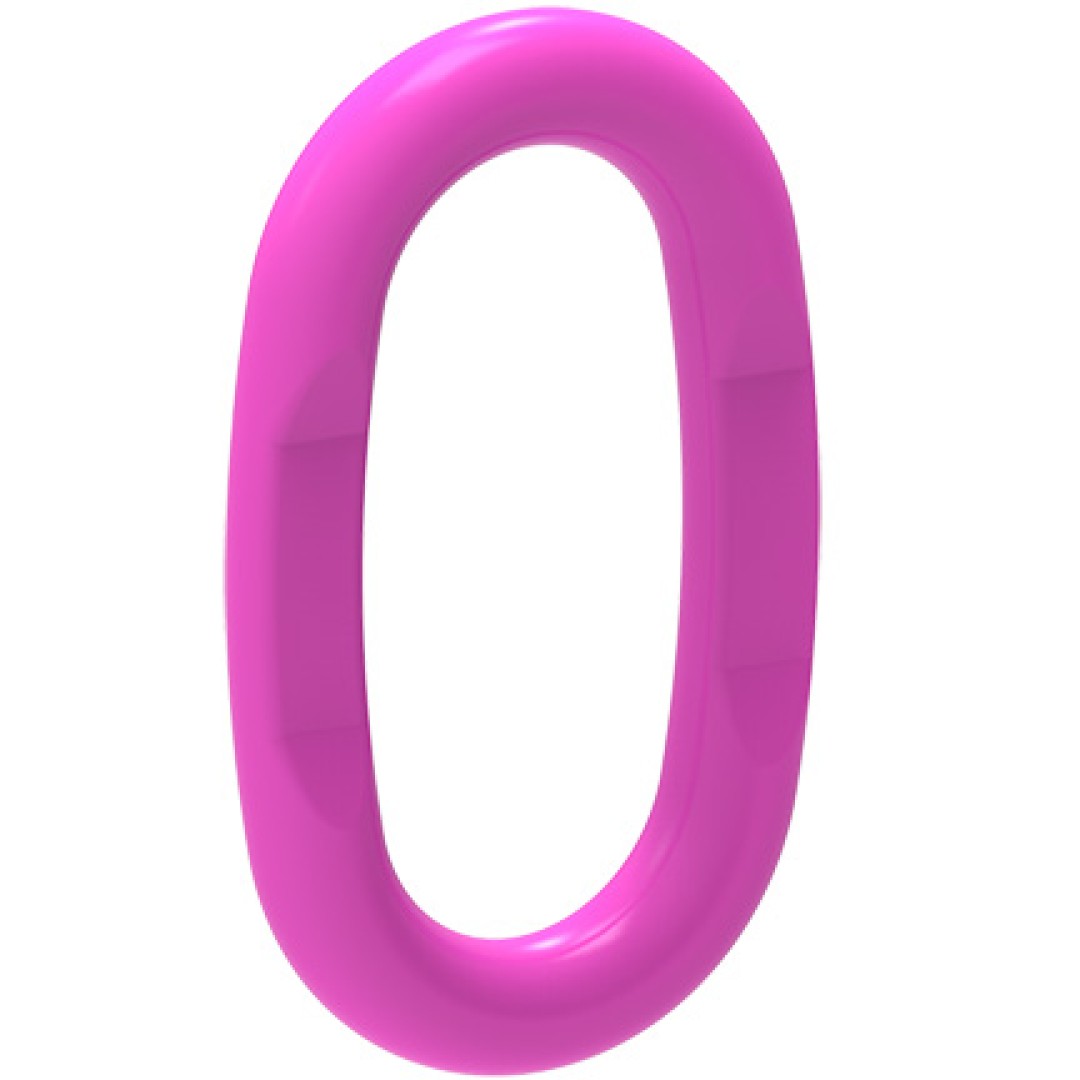

Forged special link for small load hooks, extremely light construction with a flattened center corresponding to the respective VIP - chain diameter.

Suitable for the universal swivel UW-PP or for the PP-B .
Surface: pink powder coated
When assembling or connecting components , make sure that they all have the correct WLL .

	Item Number	WLL(kg)	Weight(kg)	A(mm)	B(mm)	T(mm)	C(mm)	D(mm)
VIP-Oval-Link PP 0.63t-B	7989531	630	0.10	9	35	65	15	4
VIP-Oval-Link PP 1.5t-B	8502173	1500	0.14	11	35	65	15	6
VIP-Oval-Link PP 2.5t-B	8502174	2500	0.20	13	40	75	18	8
VIP-Oval-Link PP 4t-B	8502175	4000	0.42	16	45	95	20	10
VIP-Oval-Link PP ø13-B	8502176	6700	1.02	21	60	130	25	13
VIP-Oval-Link PP ø16-B	8502177	10000	1.40	24	65	140	28	16
